Technical Specifications
| Parameter | Details |
| Cavities | 32 Large 600MM LSR Mold |
| Material | Wacker3011/50 (50 Shore A) Flame Resistant UL94-V0 |
| Cycle Time | 120 seconds (40% faster vs manual) |
| Mold Steel | S136 (HRC 48–52) |
| Gate Technology | Cold Runner with 8 Valve Gates |
| Demolding | Semi-automated demolding |
| Lead Time | 55 days |

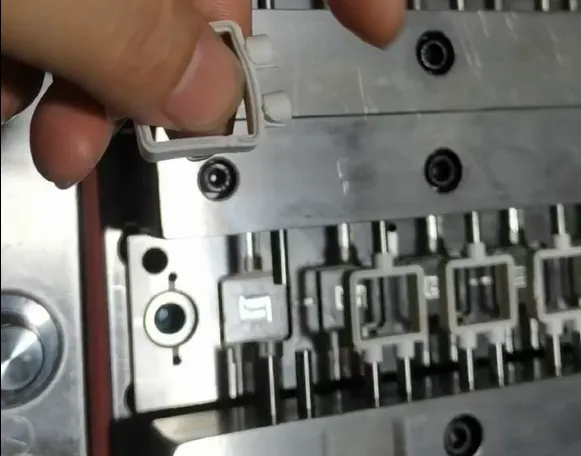

32-Cavity Flame Resistant LSR Mold for Sealing Connectors | UL94-V0 Certified
Expert cold runner LSR mold supplier for UL94-V0 flame-resistant connectors. 32 cavities, 120s cycle time, robotic demolding. Solve material shrinkage & brittleness issues.
Ideal for automotive electronics and industrial equipment. Get a quote!
Key Challenges & Solutions
Problem 1: Material Shrinkage Variations

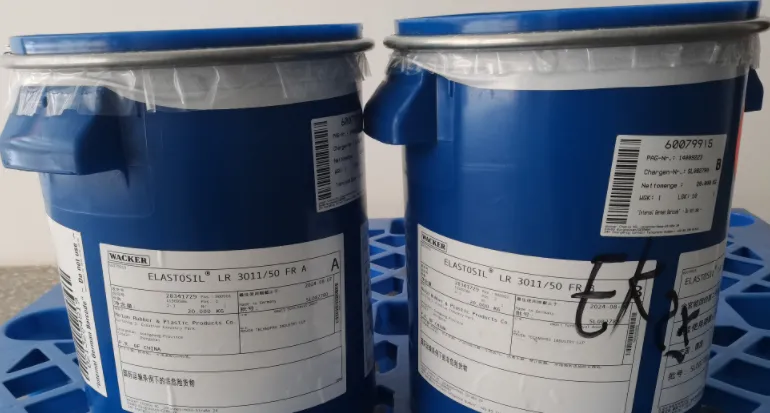

- Issue: Dow material's low tensile strength led to tearing, so have to switched to Wacker 3011/50 (material self with black pigment) with 30% higher tensile strength.
- Solution: Redesigned mold core pin for Wacker 3011/50, because of different Material, different mold Shrinkage
Problem 2: Manual Demolding Inefficiency
- Issue: 300s cycle time with labor-intensive handling.
- Solution: Semi-automatic pneumatic fixture reduced cycle time to 120s and defect rate by 60%.Problem 3: Air Extraction Holes
- Issue: Air burrle on surface/Lack LSR material caused dimensional instability.
- Solution: Drill air extraction holes of the rear mold core.
4.Technical Points
✅ Precision Adaptation: Tolerance is according to ISO3302-1 Class M1 facing such complex Structure
✅ Flame Resistance: UL94-V0 certification ensures safety in high-risk environments.
✅ LSR with Color: Seamless black pigment integration without machine contamination.
✅ Cost Efficiency: 32 cavities + robotic demolding cut per-part cost by 35%.
5.Industry Applications
- Automotive Electronics: EV battery connectors, sensor housings.
- Industrial Equipment: Flame-resistant seals for control panels.
- Consumer Electronics: High-durability USB/HDMI ports.
[Application Case: Flame-Resistant Connector for EV Chargers] , Please Contact Kaihong LSR Experts for Details DFM
6.Trust Factors & CTA
Certifications: ISO 9001, UL94-V0, REACH.
Testing Video: [Watch Mold Demolding Process ( manual demoulding and Semi-automated demolding)
